Models where it applies: Nomad / Atlas / Atlas 5/ Joa / Carado / Etrusco
This control panel enables you to activate hot water and heating for cosy showers and to warm up your van, ensuring full comfort during your adventure.
|
|

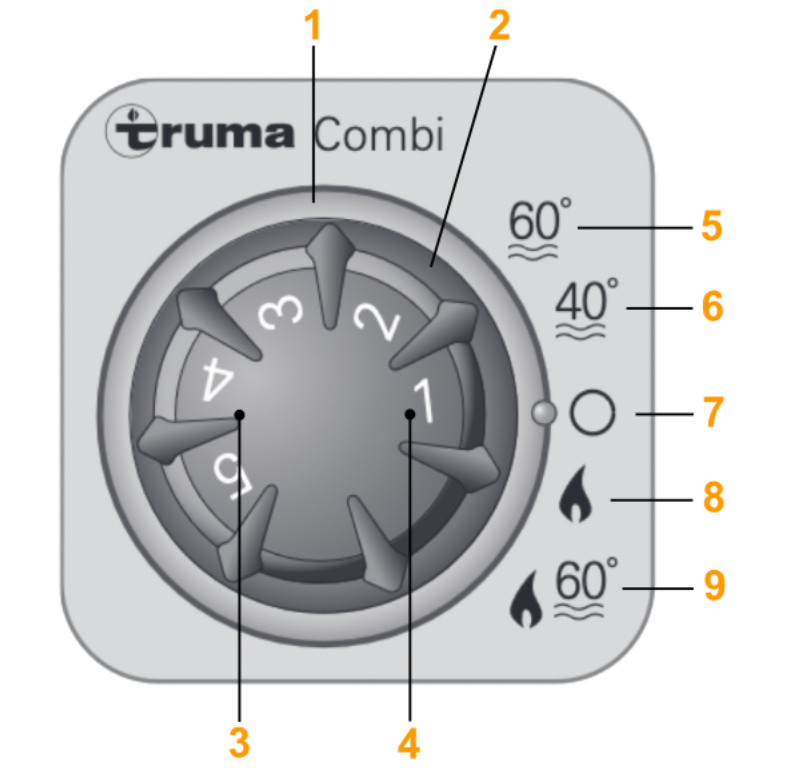

1. Outer control knob for heating mode 2. Inner control knob for temperature (1 – 5) 3. Yellow LED lit, “Boiler heat-up phase” Yellow LED flashing “Warning” Red LED lit, red LED flashing “Fault” 4. Green LED lit, “On” 5. Hot water mode - temperature 60 °C 6. Hot water mode - temperature 40 °C 7. Rotary switch “Off” 8. Air heating mode 9. Air heating and hot water mode |
Related articles:
________________________________________________________________________________________________________________
Flashing code at analogue control panel – CP Classic
Flash sequence LED:
– On / Off: 0.5 seconds
Pause between flash sequence: 5 seconds
| Fault | Cause | Rectification |
|---|---|---|
| No LED is on, the unit is switched on and is supplied with operating current | – Automatic restart is blocked, e.g. after an power failure. | – Reset (fault reset) by switching off, waiting 5 seconds and then switching on again |
| No LED illuminates after switching on. | – No operating voltage | – Check 🎥 12V battery voltage, charge battery 🎥 if necessary |
| – Device fuse or vehicle fuse defective | – Check all electrical plug connections | |
| The green LED comes on when the unit is switched on, but the heating system does not operate | – The temperature setting on the control panel is lower than the room temperature | – Select higher room temperature at the control panel 🎥 |
| After switching on the heating system, the green LED illuminates and the yellow LED flashes 1 x (Heating system continues to operate) | - Risk of low voltage | – Charge battery 🎥 |
| - Battery voltage too low < 10.4V | ||
| – Low voltage Battery voltage too low < 10.0V | – Charge battery. If necessary replace old battery 🎥 |
|
| – Overvoltage > 16.4V | – Check battery voltage and voltage sources such as the charger 🎥 |
|
| Yellow LED flashes 3 x | – Open window above cowl (window switch) | – Close window in dinning area 🎥 |
| Yellow LED flashes 4 x (After operating for a longer period of time, the heating system switches to failure) | – Summer mode with empty water container | – Switch unit off and allow to cool, fill boiler with water |
| – Warm air outlets blocked | – Check individual outlet apertures | |
| – Circulated air intake blocked | – Remove blockage from circulated air intake | |
| Yellow LED flashes 5 x | – Room temperature sensor or cable defective | – Please contact Customer Service |
| Yellow LED flashes 7 x | – Control panel or control panel cable defective | – Please contact Customer Service |
| Yellow LED flashes 8 x | – FrostControl heating element has a short circuit | – Please contact Customer Service |
| Yellow LED flashes 9 x (approx. 30 seconds after switching on the heating system) | – Gas cylinder or quick-acting valve in gas supply line closed | – Check gas supply and open valves |
| – Gas cylinder empty | – Replacing a gas cylinder 🎥 |
|
| (After operating for a longer period of time, the heating system switches to failure) | – Gas pressure regulation system iced up | – Use propane (butane is unsuitable for heating, particularly at temperatures below 10 °C) |
| – Butane content in the gas cylinder too high | ||
| Red LED flashes 1 - 8 times | – Heating system fault | – Please contact Customer Service. |
| Green LED flashes (with 5 Hz) after the heating system has been switched off | – After-running is active to reduce the temperature of the unit | – No fault. After-run switches itself off after max. 5 minutes. |
| Room heating does not react to adjustment immediately | – After-running is active to reduce the temperature of the unit | – No fault. After-run switches itself off after max. 5 minutes |
| After switching on, the green and the red LED illuminate | – Faulty electronics | – Please contact Customer Service |
